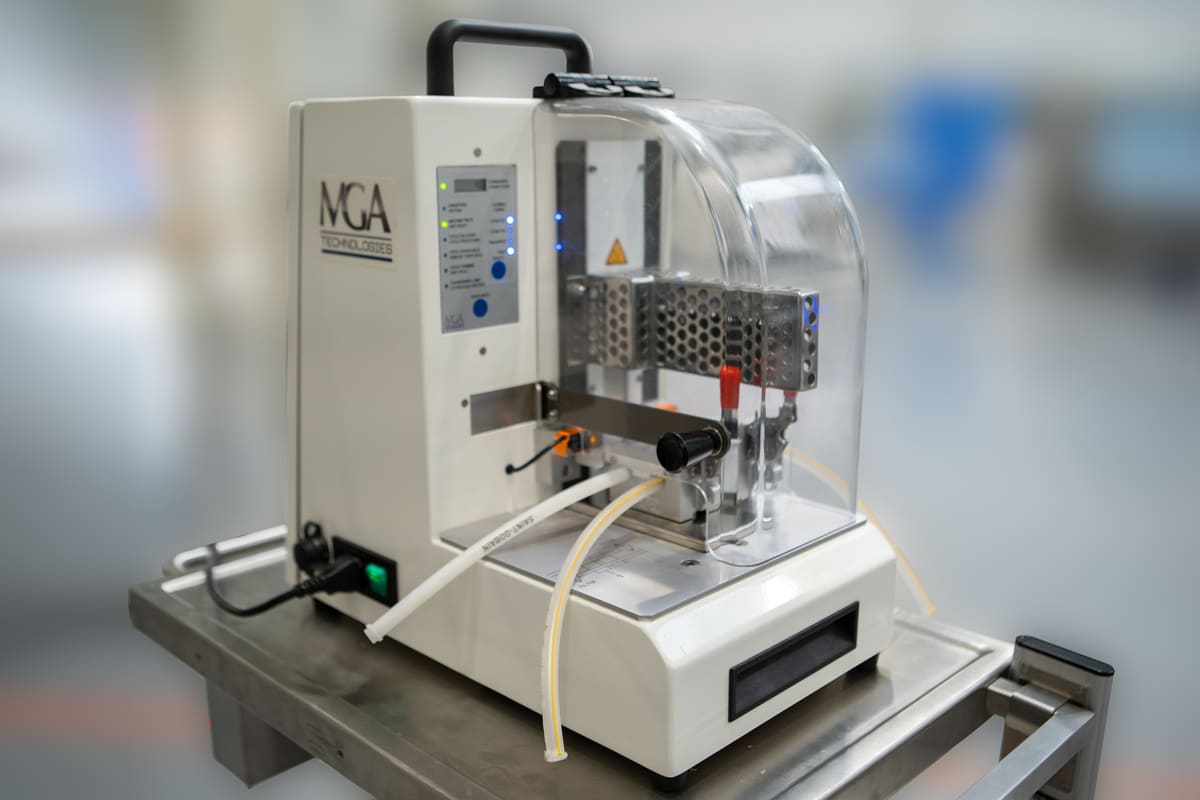

Sterile Tube Welder for Pharmaceutical Tubes
The sterile tube welder is a piece of cleanroom equipment designed to weld two C-Flex® production hoses in a completely safe and sterile way.
The unique translation technology features a specially developed multi-use blade kit that allows for an automated connection between two sterile thermoplastic elastomer (TPE) tubes to be made. The connector is suitable for the closed system.
How It Works
The adjustment of the parameters is carried out by detecting the set of matrix (tube holders) previously positioned by the operator. Each tube format has a dedicated set, which limits human error in setting the parameters. The blade set quickly rises to the set temperature and then cuts the tubes while maintaining the optimum welding temperature.
The tube holders slide out and the multi-use blade moves up. The connection is made and the operator can then retrieve the tube. The temperature of the blade, together with the relative movements of the dies, ensures the highest quality of weld without risk of particulate contamination or breach of sterility.
Technical Specifications
- Various sizes of TPE tubing available from 1/4″ (6.4mm) to 3/4″ (19.1mm) outside diameter
- Several brands of TPE tubing already qualified such as Cflex, Advantaflex, Tuflux and other brands on request after internal validation.
- Several uses such as on empty, wet or fluid filled tubes at atmospheric pressure.
Sterile Welder
Advantages of the Device
Integrated multi-use blade kit guaranteed for 200 sterile connections
Automated system limiting musculoskeletal disorders and human error
Robust and sustainable device in aluminum RAL9010 or stainless steel
Easily cleanable, designed in accordance with cGMP, and CE certified
Robust and Sustainable
The maintenance of sterile connectors is carried out by expert technicians at MGA Technologies or on site (on request):
- Preventive maintenance contract and calibration of your devices (see Our Services)
- Spare parts in stock and quick repairs possible
Designed to last, our equipment is easily repairable and parts are maintained and stored to gain reactivity for our customers. We adapt our processes as much as possible to match our customers’ production schedules and constraints in order to offer a quality service.
The sterile welder connection solution is environmentally friendly and greatly reduces the amount of waste compared to other single-use solutions. On request, we collect the blade kits for reconditioning and recycling.
Maintenance carried out by our technicians
Services & Accessories
Matrix sets (Tube holders)
Matrix sets (Tube holders)
Blade kit
Blade kit
Stainless steel version
Stainless steel version
