AseptiSeal
Sterile Disconnect Device for Pharmaceutical Tubing

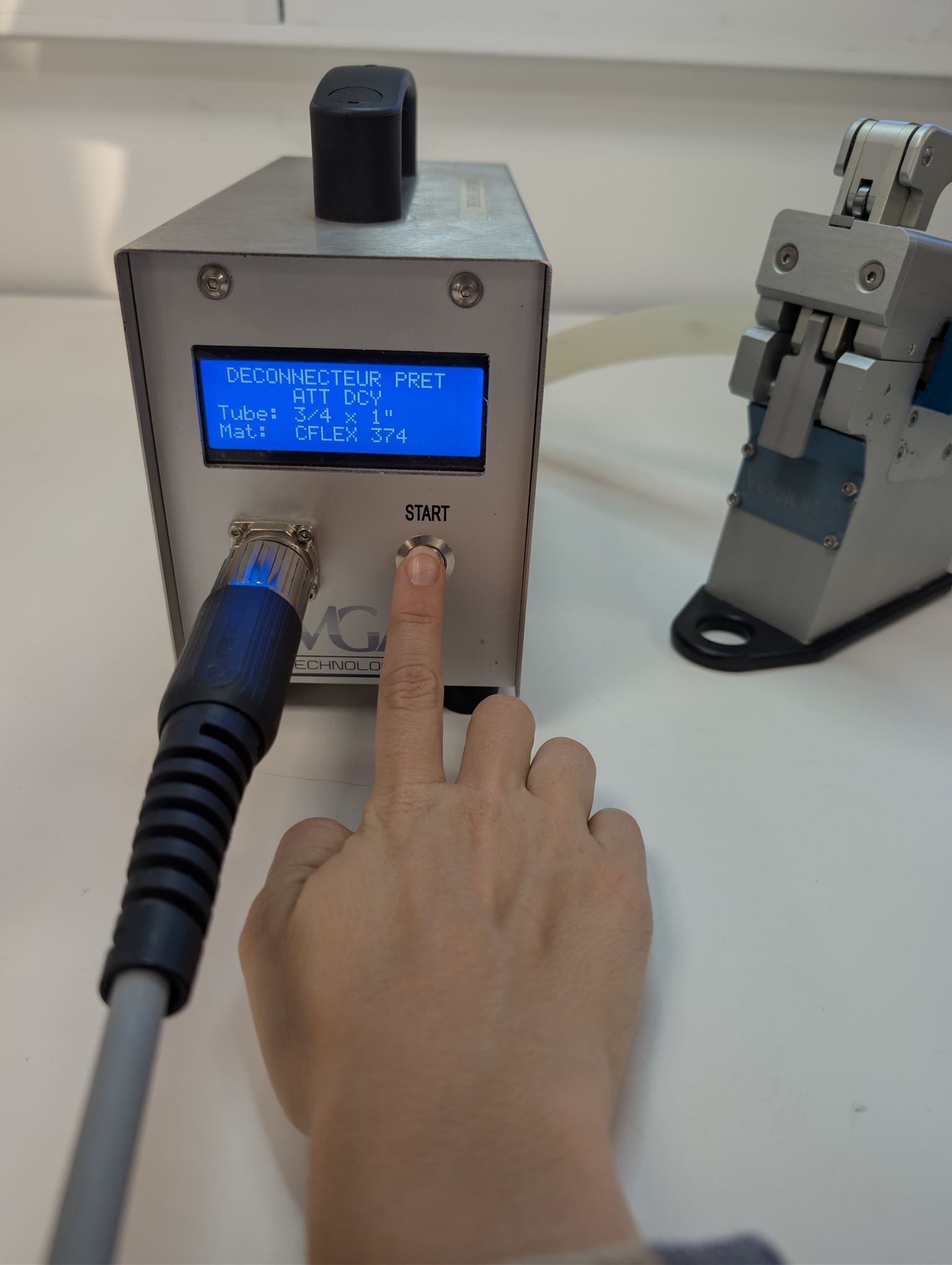

Start button
- A ‘Start’ button to select the type of tube and start the cycle in order to limit the risk of human error.

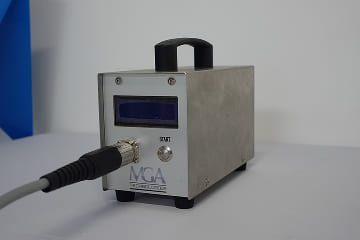

Technical specifications
- Optimised cycle time for maximum productivity
- Automatic mould detection
- 100% electric: cooling without compressed air
- Preventive and corrective maintenance provided

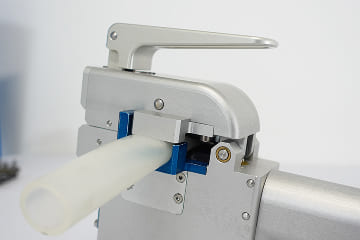

Ergonomics and mobility
- Lightweight clamp (2.1 kg) for use throughout the single-use chain
- 2.5 m flexible cord: freedom of movement
- Multilingual LCD screen for intuitive use

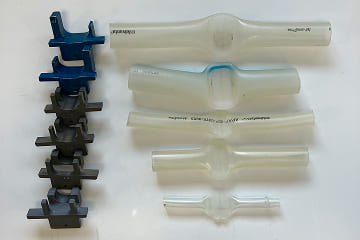

Flexibility of use
- Up to 4 sizes per device (1/8‘ outer diameter to 1’ outer diameter)
- Compatibility with various TPE: Tuflux®, C-Flex® 072, C-Flex® 374, AdvantaFlex®
MGA Technologies Sterile Disconnector
Optimal safety for single-use systems in the pharmaceutical industry
The MGA Technologies Sterile Disconnector is essential equipment for ensuring the sterility and safety of sterile disconnections of pharmaceutical hoses in your cleanrooms.
GMP Compliance
Easy to use
Reduces the risk of human error
Validated processes
Guaranteed traceability and reproducibility
Ergonomic design
Suitable for cleanroom environments
Comprehensive quality documentation
Packaging + IQ/OQ support

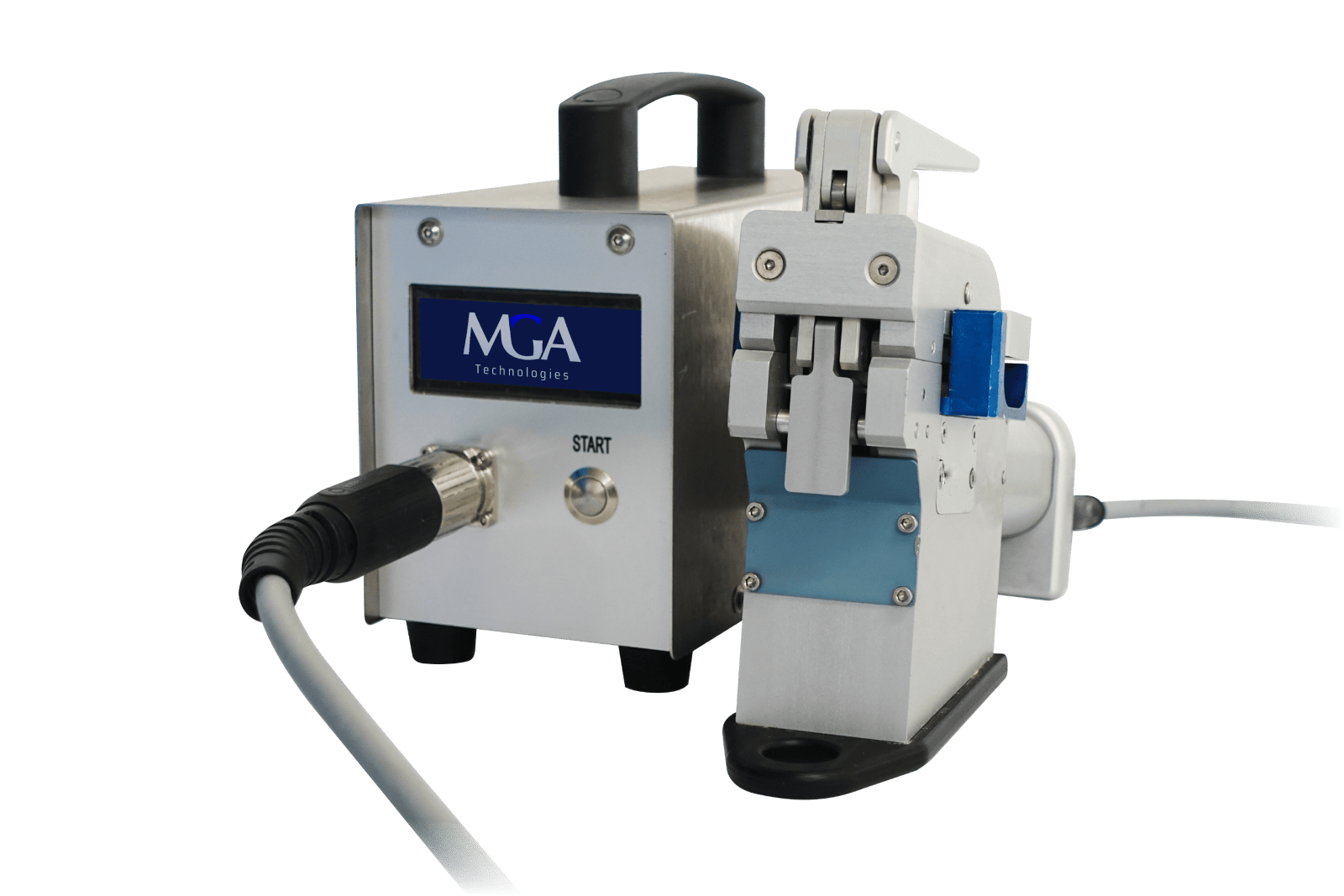

AspetiSeal in Detail
Designed specifically for the biopharmaceutical industry and single-use systems, our equipment effectively separates two pieces of process equipment connected by a thermoplastic (TPE) hose. It is certified for use with C-Flex 074, C-Flex 072, Tuflux and Advantaflex. Disconnection is therefore completely safe and sterile.
AspetiSeal on Video
Key Benefits
Technical Specifications
Operation
Key Benefits
Ergonomics and Precision: MGA Technologies’ exclusive offset handle is lightweight and easy to handle, allowing you to work as close as possible to the TPE tube disconnect area, offering superior precision and comfort of use. Cooling without compressed air
Guaranteed Weld Quality: Our unique die set system automatically detects the optimal disconnect/weld cycle. This ensures the highest weld quality and eliminates the risk of human error.
Compliance and Adaptability: The disconnect is fully adapted for use in closed systems, meeting the rigorous standards of the GMP/cGMP environment.
Technical Specifications
- Interchangeable matrice : one device for multiple application
- Up to 4 formats per device (OD 1/8″ to OD 1″)
- Compatible with various TPEs : Tuflux®, C-Flex® 072, C-Flex® 374, AdvantaFlex®
- Works on both filled and dry tubing
- Optimized cycle time for maximum productivity
- Automatic matrix detection
- 100 % electric : cooling without compressed air
- Comprehensive technical support : preventive & corrective maintenance
- Lightweight clamp (2,1 kg) for interventions across your single-use process line
- Flexible 2,5 m connection cable for maximum freedom of movement
- Multilingual LCD screen for intuitive operation
Operation

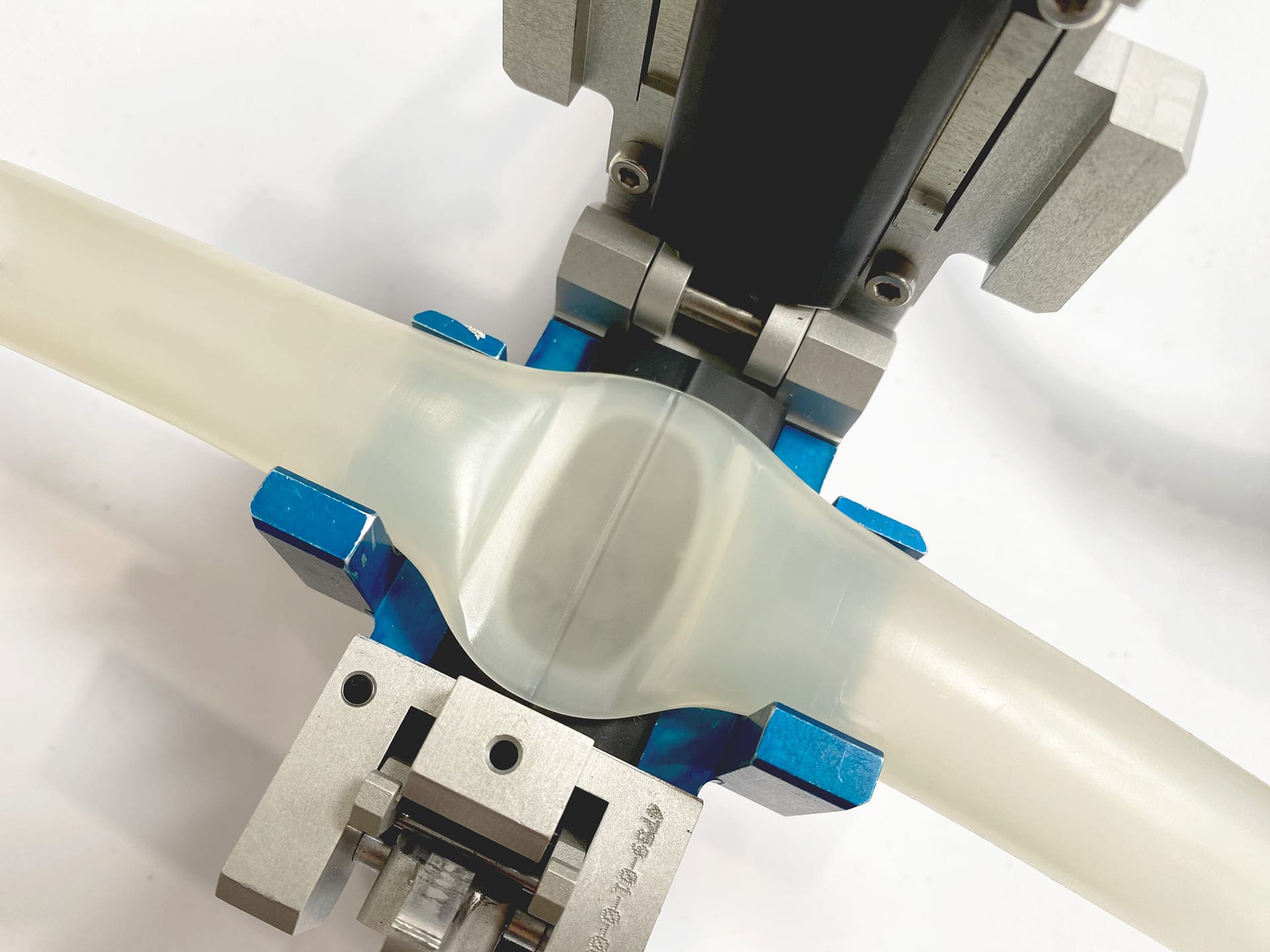

Our Sterile Disconnector ensures reliable sterile disconnection of your thermoplastic hoses (C-Flex®/TPE type) via a secure, automated heat-sealing process:
- Locking: The operator places the hose in the jaw. The jaw closes and is locked by an electromagnet to maintain constant pressure.
- Sterile disconnection: A ceramic heating device rises in temperature. A thermal bearing ensures uniform fusion of the tube and guarantees total local sterilisation (destruction of all microbial contamination).
- Cooling: An integrated vane pump ensures active and rapid cooling of the welding area. No compressed air network is required.
- Finalisation: The electromagnet releases the lock. After a visual inspection of the weld bead, the operator manually cuts the tube along the mark, thus completing the sterile disconnection of your single-use equipment.
Get a free, no-obligation quotation
Contact our sales team to get a personalised quote for the MGA Technologies sterile disconnector.
Pictures of the AspetiSeal
Possible Applications
The MGA Technologies sterile disconnector is used in many pharmaceutical and medical applications.
